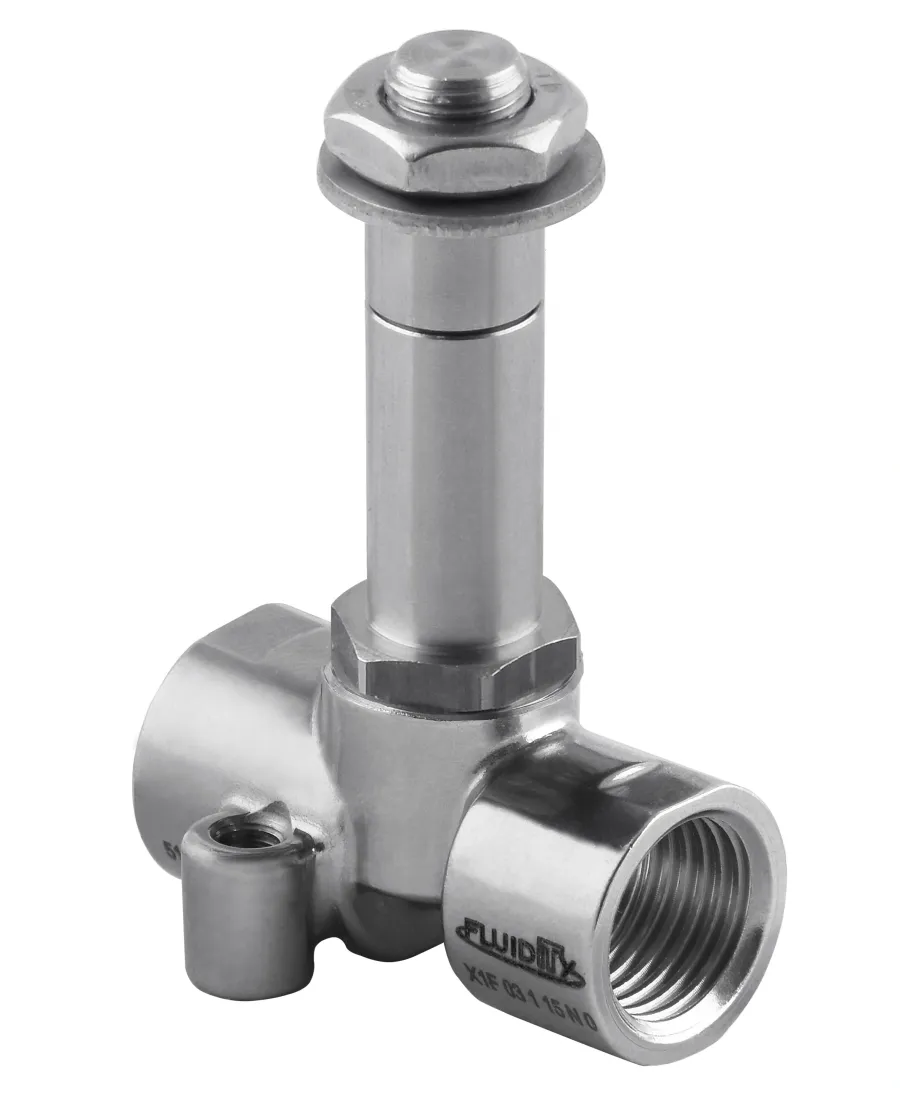

Serie X1F INOX Electroválvulas de Accionamiento DirectoVálvula
Serie X1F INOX Electroválvulas de Accionamiento Directo
Serie X1F - ELECTROVÁLVULAS DE ACCIONAMIENTO DIRECTO CON CUERPO DE ACERO INOX AISI 316L BIESTABLE - OPERADOR 10 mm
152 referencias
Desde, por pieza, IVA incluido
52,02 €
Sin IVA
42,99 €
Elige tu referencia en la tabla, pon la cantidad y añádela al carrito. ¿No la encuentras o necesitas muchas? Pídenos presupuesto y te contestamos en el día.
Envío: Península 13,19 € por pedido, gratis en pedidos desde 600 €; Baleares 24,08 € por pedido. Si el pedido lleva también armarios o cajas, son dos envíos. Canarias, Ceuta y Melilla: bajo presupuesto. Importes con IVA. Envíos y plazos
Plazo: Envío en 24-72 h laborables si está en el almacén de Aignep en España; si viene de fábrica, te avisamos del plazo antes de enviarlo.
Referencias y precios
152 referencias
| Código y precio | Material juntas | Temperatura | Conexiones | Ø Orificio (mm) | Viscosidad (cSt) | Kv (m3/h) | OPD (ΔP) - DC (6.5 W) | OPD (ΔP) - DC (8 W) | OPD (ΔP) - AC (7.5 VA) | OPD (ΔP) - AC (11 VA) | OPD (ΔP) - DC (5.3 W) - Atex Ex m | OPD (ΔP) - AC (5.3 W) - Atex Ex m | OPD (ΔP) - DC (2 W) | OPD (ΔP) - DC (3 W) | OPD (ΔP) - DC (4 W) | Ø Orificio - IN/EXH (mm) | Kv - IN/EXH (m3/h) | Juntas | Pieza sin IVA | Con IVA | Acción |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| X1F 02 1 15 N 042,99 € + IVA · 52,02 € | NBR | -10°C +90°C | 1/8" | 1.5 | 25 | 0.06 | 0 - 16 bar | 0 - 40 bar | 0 - 30 bar | 0 - 40 bar | 0 - 40 bar | 0 - 40 bar | NBR | 42,99 € | 52,02 € | ||||||
| X1F 02 2 15 N 059,01 € + IVA · 71,40 € | NBR | -10°C +90°C | 1/8" | 1.5 | 25 | 0.06 | 0 - 18 bar | 0 - 18 bar | 0 - 18 bar | 0 - 18 bar | NBR | 59,01 € | 71,40 € | ||||||||
| X1F 02 1 15 V 044,12 € + IVA · 53,39 € | FKM | -10°C +140°C | 1/8" | 1.5 | 25 | 0.06 | 0 - 16 bar | 0 - 40 bar | 0 - 30 bar | 0 - 40 bar | 0 - 40 bar | 0 - 40 bar | FKM | 44,12 € | 53,39 € | ||||||
| X1F 02 2 15 V 060,14 € + IVA · 72,77 € | FKM | -10°C +140°C | 1/8" | 1.5 | 25 | 0.06 | 0 - 18 bar | 0 - 18 bar | 0 - 18 bar | 0 - 18 bar | FKM | 60,14 € | 72,77 € | ||||||||
| X1F 02 1 15 E 043,93 € + IVA · 53,16 € | EPDM | -10°C +140°C | 1/8" | 1.5 | 25 | 0.06 | 0 - 16 bar | 0 - 40 bar | 0 - 30 bar | 0 - 40 bar | 0 - 40 bar | 0 - 40 bar | EPDM | 43,93 € | 53,16 € | ||||||
| X1F 02 2 15 E 059,95 € + IVA · 72,54 € | EPDM | -10°C +140°C | 1/8" | 1.5 | 25 | 0.06 | 0 - 18 bar | 0 - 18 bar | 0 - 18 bar | 0 - 18 bar | EPDM | 59,95 € | 72,54 € | ||||||||
| X1F 02 1 15 C 043,93 € + IVA · 53,16 € | CR | 43,93 € | 53,16 € | ||||||||||||||||||
| X1F 02 2 15 C 059,95 € + IVA · 72,54 € | CR | -35°C +100°C | 1/8" | 1.5 | 25 | 0.06 | 0 - 18 bar | 0 - 18 bar | 0 - 18 bar | 0 - 18 bar | CR | 59,95 € | 72,54 € | ||||||||
| X1F 02 1 02 N 042,99 € + IVA · 52,02 € | NBR | -10°C +90°C | 1/8" | 2 | 37 | 0.09 | 0 - 12 bar | 0 - 30 bar | 0 - 25 bar | 0 - 40 bar | 0 - 18 bar | 0 - 35 bar | NBR | 42,99 € | 52,02 € | ||||||
| X1F 02 2 02 N 059,01 € + IVA · 71,40 € | NBR | -10°C +90°C | 1/8" | 2 | 37 | 0.09 | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | NBR | 59,01 € | 71,40 € | ||||||||
| X1F 02 1 02 V 044,12 € + IVA · 53,39 € | FKM | -10°C +140°C | 1/8" | 2 | 37 | 0.09 | 0 - 12 bar | 0 - 30 bar | 0 - 25 bar | 0 - 40 bar | 0 - 18 bar | 0 - 35 bar | FKM | 44,12 € | 53,39 € | ||||||
| X1F 02 2 02 V 060,14 € + IVA · 72,77 € | FKM | -10°C +140°C | 1/8" | 2 | 37 | 0.09 | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | FKM | 60,14 € | 72,77 € | ||||||||
| X1F 02 1 02 E 043,93 € + IVA · 53,16 € | EPDM | -10°C +140°C | 1/8" | 2 | 37 | 0.09 | 0 - 12 bar | 0 - 30 bar | 0 - 25 bar | 0 - 40 bar | 0 - 18 bar | 0 - 35 bar | EPDM | 43,93 € | 53,16 € | ||||||
| X1F 02 2 02 E 059,95 € + IVA · 72,54 € | EPDM | -10°C +140°C | 1/8" | 2 | 37 | 0.09 | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | EPDM | 59,95 € | 72,54 € | ||||||||
| X1F 02 1 02 C 043,93 € + IVA · 53,16 € | CR | 43,93 € | 53,16 € | ||||||||||||||||||
| X1F 02 2 02 C 059,95 € + IVA · 72,54 € | CR | -35°C +100°C | 1/8" | 2 | 37 | 0.09 | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | CR | 59,95 € | 72,54 € | ||||||||
| X1F 02 1 25 N 042,99 € + IVA · 52,02 € | NBR | -10°C +90°C | 1/8" | 2.5 | 53 | 0.15 | 0 - 4.5 bar | 0 - 13 bar | 0 - 18 bar | 0 - 30 bar | 0 - 6 bar | 0 - 12 bar | NBR | 42,99 € | 52,02 € | ||||||
| X1F 02 2 25 N 059,01 € + IVA · 71,40 € | NBR | -10°C +90°C | 1/8" | 2.5 | 53 | 0.15 | 0 - 6.5 bar | 0 - 6.5 bar | 0 - 6.5 bar | 0 - 6.5 bar | NBR | 59,01 € | 71,40 € | ||||||||
| X1F 02 1 25 V 044,12 € + IVA · 53,39 € | FKM | -10°C +140°C | 1/8" | 2.5 | 53 | 0.15 | 0 - 4.5 bar | 0 - 13 bar | 0 - 18 bar | 0 - 30 bar | 0 - 6 bar | 0 - 12 bar | FKM | 44,12 € | 53,39 € | ||||||
| X1F 02 2 25 V 060,14 € + IVA · 72,77 € | FKM | -10°C +140°C | 1/8" | 2.5 | 53 | 0.15 | 0 - 6.5 bar | 0 - 6.5 bar | 0 - 6.5 bar | 0 - 6.5 bar | FKM | 60,14 € | 72,77 € | ||||||||
| X1F 02 1 25 E 043,93 € + IVA · 53,16 € | EPDM | -10°C +140°C | 1/8" | 2.5 | 53 | 0.15 | 0 - 4.5 bar | 0 - 13 bar | 0 - 18 bar | 0 - 30 bar | 0 - 6 bar | 0 - 12 bar | EPDM | 43,93 € | 53,16 € | ||||||
| X1F 02 2 25 E 059,95 € + IVA · 72,54 € | EPDM | -10°C +140°C | 1/8" | 2.5 | 53 | 0.15 | 0 - 6.5 bar | 0 - 6.5 bar | 0 - 6.5 bar | 0 - 6.5 bar | EPDM | 59,95 € | 72,54 € | ||||||||
| X1F 02 1 25 C 043,93 € + IVA · 53,16 € | CR | 43,93 € | 53,16 € | ||||||||||||||||||
| X1F 02 1 03 N 042,99 € + IVA · 52,02 € | NBR | -10°C +90°C | 1/8" | 3 | 53 | 0.20 | 0 - 3 bar | 0 - 7 bar | 0 - 10 bar | 0 - 16 bar | 0 - 3 bar | 0 - 5 bar | NBR | 42,99 € | 52,02 € | ||||||
| X1F 02 2 25 C 059,95 € + IVA · 72,54 € | CR | -35°C +100°C | 1/8" | 2.5 | 53 | 0.15 | 0 - 6.5 bar | 0 - 6.5 bar | 0 - 6.5 bar | 0 - 6.5 bar | CR | 59,95 € | 72,54 € | ||||||||
| X1F 02 1 03 V 044,12 € + IVA · 53,39 € | FKM | -10°C +140°C | 1/8" | 3 | 53 | 0.20 | 0 - 3 bar | 0 - 7 bar | 0 - 10 bar | 0 - 16 bar | 0 - 3 bar | 0 - 5 bar | FKM | 44,12 € | 53,39 € | ||||||
| X1F 02 2 03 N 059,01 € + IVA · 71,40 € | NBR | -10°C +90°C | 1/8" | 3 | 53 | 0.20 | 0 - 4.2 bar | 0 - 4.2 bar | 0 - 4.2 bar | 0 - 4.2 bar | NBR | 59,01 € | 71,40 € | ||||||||
| X1F 02 1 03 E 043,93 € + IVA · 53,16 € | EPDM | -10°C +140°C | 1/8" | 3 | 53 | 0.20 | 0 - 3 bar | 0 - 7 bar | 0 - 10 bar | 0 - 16 bar | 0 - 3 bar | 0 - 5 bar | EPDM | 43,93 € | 53,16 € | ||||||
| X1F 02 2 03 V 060,14 € + IVA · 72,77 € | FKM | -10°C +140°C | 1/8" | 3 | 53 | 0.20 | 0 - 4.2 bar | 0 - 4.2 bar | 0 - 4.2 bar | 0 - 4.2 bar | FKM | 60,14 € | 72,77 € | ||||||||
| X1F 02 1 03 C 043,93 € + IVA · 53,16 € | CR | 43,93 € | 53,16 € | ||||||||||||||||||
| X1F 02 2 03 E 059,95 € + IVA · 72,54 € | EPDM | -10°C +140°C | 1/8" | 3 | 53 | 0.20 | 0 - 4.2 bar | 0 - 4.2 bar | 0 - 4.2 bar | 0 - 4.2 bar | EPDM | 59,95 € | 72,54 € | ||||||||
| X1F 02 1 04 N 042,99 € + IVA · 52,02 € | NBR | -10°C +90°C | 1/8" | 4 | 53 | 0.30 | 0 - 1 bar | 0 - 2.5 bar | 0 - 4 bar | 0 - 8 bar | 0 - 1 bar | 0 - 2.5 bar | NBR | 42,99 € | 52,02 € | ||||||
| X1F 02 2 03 C 059,95 € + IVA · 72,54 € | CR | -35°C +100°C | 1/8" | 3 | 53 | 0.20 | 0 - 4.2 bar | 0 - 4.2 bar | 0 - 4.2 bar | 0 - 4.2 bar | CR | 59,95 € | 72,54 € | ||||||||
| X1F 02 1 04 V 044,12 € + IVA · 53,39 € | FKM | -10°C +140°C | 1/8" | 4 | 53 | 0.30 | 0 - 1 bar | 0 - 2.5 bar | 0 - 4 bar | 0 - 8 bar | 0 - 1 bar | 0 - 2.5 bar | FKM | 44,12 € | 53,39 € | ||||||
| X1F 03 2 15 N 070,01 € + IVA · 84,71 € | NBR | -10°C +90°C | 1/4" | 1.5 | 25 | 0.06 | 0 - 18 bar | 0 - 18 bar | 0 - 18 bar | 0 - 18 bar | NBR | 70,01 € | 84,71 € | ||||||||
| X1F 02 1 04 E 043,93 € + IVA · 53,16 € | EPDM | -10°C +140°C | 1/8" | 4 | 53 | 0.30 | 0 - 1 bar | 0 - 2.5 bar | 0 - 4 bar | 0 - 8 bar | 0 - 1 bar | 0 - 2.5 bar | EPDM | 43,93 € | 53,16 € | ||||||
| X1F 03 2 15 V 071,14 € + IVA · 86,08 € | FKM | -10°C +140°C | 1/4" | 1.5 | 25 | 0.06 | 0 - 18 bar | 0 - 18 bar | 0 - 18 bar | 0 - 18 bar | FKM | 71,14 € | 86,08 € | ||||||||
| X1F 02 1 04 C 043,93 € + IVA · 53,16 € | CR | -35°C +100°C | 1/8" | 4 | 53 | 0.30 | 0 - 1 bar | 0 - 2.5 bar | 0 - 4 bar | 0 - 8 bar | 0 - 1 bar | 0 - 2.5 bar | CR | 43,93 € | 53,16 € | ||||||
| X1F 03 2 15 E 070,95 € + IVA · 85,85 € | EPDM | -10°C +140°C | 1/4" | 1.5 | 25 | 0.06 | 0 - 18 bar | 0 - 18 bar | 0 - 18 bar | 0 - 18 bar | EPDM | 70,95 € | 85,85 € | ||||||||
| X1F 03 1 15 N 053,99 € + IVA · 65,33 € | NBR | -10°C +90°C | 1/4" | 1.5 | 25 | 0.06 | 0 - 16 bar | 0 - 40 bar | 0 - 30 bar | 0 - 40 bar | 0 - 40 bar | 0 - 40 bar | NBR | 53,99 € | 65,33 € | ||||||
| X1F 03 2 15 C 070,95 € + IVA · 85,85 € | CR | -35°C +100°C | 1/4" | 1.5 | 25 | 0.06 | 0 - 18 bar | 0 - 18 bar | 0 - 18 bar | 0 - 18 bar | CR | 70,95 € | 85,85 € | ||||||||
| X1F 03 1 15 V 055,11 € + IVA · 66,68 € | FKM | -10°C +140°C | 1/4" | 1.5 | 25 | 0.06 | 0 - 16 bar | 0 - 40 bar | 0 - 30 bar | 0 - 40 bar | 0 - 40 bar | 0 - 40 bar | FKM | 55,11 € | 66,68 € | ||||||
| X1F 03 2 02 N 070,01 € + IVA · 84,71 € | NBR | -10°C +90°C | 1/4" | 2 | 37 | 0.09 | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | NBR | 70,01 € | 84,71 € | ||||||||
| X1F 03 1 15 E 054,93 € + IVA · 66,47 € | EPDM | -10°C +140°C | 1/4" | 1.5 | 25 | 0.06 | 0 - 16 bar | 0 - 40 bar | 0 - 30 bar | 0 - 40 bar | 0 - 40 bar | 0 - 40 bar | EPDM | 54,93 € | 66,47 € | ||||||
| X1F 03 2 02 V 071,14 € + IVA · 86,08 € | FKM | -10°C +140°C | 1/4" | 2 | 37 | 0.09 | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | FKM | 71,14 € | 86,08 € | ||||||||
| X1F 03 1 15 C 054,93 € + IVA · 66,47 € | CR | 54,93 € | 66,47 € | ||||||||||||||||||
| X1F 03 1 02 N 053,99 € + IVA · 65,33 € | NBR | -10°C +90°C | 1/4" | 2 | 37 | 0.09 | 0 - 12 bar | 0 - 30 bar | 0 - 25 bar | 0 - 40 bar | 0 - 18 bar | 0 - 35 bar | NBR | 53,99 € | 65,33 € | ||||||
| X1F 03 2 02 E 070,95 € + IVA · 85,85 € | EPDM | -10°C +140°C | 1/4" | 2 | 37 | 0.09 | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | EPDM | 70,95 € | 85,85 € | ||||||||
| X1F 03 1 02 V 055,11 € + IVA · 66,68 € | FKM | -10°C +140°C | 1/4" | 2 | 37 | 0.09 | 0 - 12 bar | 0 - 30 bar | 0 - 25 bar | 0 - 40 bar | 0 - 18 bar | 0 - 35 bar | FKM | 55,11 € | 66,68 € | ||||||
| X1F 03 2 02 C 070,95 € + IVA · 85,85 € | CR | -35°C +100°C | 1/4" | 2 | 37 | 0.09 | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | CR | 70,95 € | 85,85 € | ||||||||
| X1F 03 1 02 E 054,93 € + IVA · 66,47 € | EPDM | -10°C +140°C | 1/4" | 2 | 37 | 0.09 | 0 - 12 bar | 0 - 30 bar | 0 - 25 bar | 0 - 40 bar | 0 - 18 bar | 0 - 35 bar | EPDM | 54,93 € | 66,47 € | ||||||
| X1F 03 2 25 N 070,01 € + IVA · 84,71 € | NBR | -10°C +90°C | 1/4" | 2.5 | 53 | 0.15 | 0 - 6.5 bar | 0 - 6.5 bar | 0 - 6.5 bar | 0 - 6.5 bar | NBR | 70,01 € | 84,71 € | ||||||||
| X1F 03 1 02 C 054,93 € + IVA · 66,47 € | CR | 54,93 € | 66,47 € | ||||||||||||||||||
| X1F 03 2 25 V 071,14 € + IVA · 86,08 € | FKM | -10°C +140°C | 1/4" | 2.5 | 53 | 0.15 | 0 - 6.5 bar | 0 - 6.5 bar | 0 - 6.5 bar | 0 - 6.5 bar | FKM | 71,14 € | 86,08 € | ||||||||
| X1F 03 1 25 N 053,99 € + IVA · 65,33 € | NBR | -10°C +90°C | 1/4" | 2.5 | 53 | 0.15 | 0 - 4.5 bar | 0 - 13 bar | 0 - 18 bar | 0 - 30 bar | 0 - 6 bar | 0 - 12 bar | NBR | 53,99 € | 65,33 € | ||||||
| X1F 03 2 25 E 070,95 € + IVA · 85,85 € | EPDM | -10°C +140°C | 1/4" | 2.5 | 53 | 0.15 | 0 - 6.5 bar | 0 - 6.5 bar | 0 - 6.5 bar | 0 - 6.5 bar | EPDM | 70,95 € | 85,85 € | ||||||||
| X1F 03 1 25 V 055,11 € + IVA · 66,68 € | FKM | -10°C +140°C | 1/4" | 2.5 | 53 | 0.15 | 0 - 4.5 bar | 0 - 13 bar | 0 - 18 bar | 0 - 30 bar | 0 - 6 bar | 0 - 12 bar | FKM | 55,11 € | 66,68 € | ||||||
| X1F 03 2 25 C 070,95 € + IVA · 85,85 € | CR | -35°C +100°C | 1/4" | 2.5 | 53 | 0.15 | 0 - 6.5 bar | 0 - 6.5 bar | 0 - 6.5 bar | 0 - 6.5 bar | CR | 70,95 € | 85,85 € | ||||||||
| X1F 03 1 25 E 054,93 € + IVA · 66,47 € | EPDM | -10°C +140°C | 1/4" | 2.5 | 53 | 0.15 | 0 - 4.5 bar | 0 - 13 bar | 0 - 18 bar | 0 - 30 bar | 0 - 6 bar | 0 - 12 bar | EPDM | 54,93 € | 66,47 € | ||||||
| X1F 03 2 03 N 070,01 € + IVA · 84,71 € | NBR | -10°C +90°C | 1/4" | 3 | 53 | 0.20 | 0 - 4.2 bar | 0 - 4.2 bar | 0 - 4.2 bar | 0 - 4.2 bar | NBR | 70,01 € | 84,71 € | ||||||||
| X1F 03 1 25 C 054,93 € + IVA · 66,47 € | CR | 54,93 € | 66,47 € | ||||||||||||||||||
| X1F 03 2 03 V 071,14 € + IVA · 86,08 € | FKM | -10°C +140°C | 1/4" | 3 | 53 | 0.20 | 0 - 4.2 bar | 0 - 4.2 bar | 0 - 4.2 bar | 0 - 4.2 bar | FKM | 71,14 € | 86,08 € | ||||||||
| X1F 03 1 03 N 053,99 € + IVA · 65,33 € | NBR | -10°C +90°C | 1/4" | 3 | 53 | 0.20 | 0 - 3 bar | 0 - 7 bar | 0 - 10 bar | 0 - 16 bar | 0 - 3 bar | 0 - 5 bar | NBR | 53,99 € | 65,33 € | ||||||
| X1F 03 2 03 E 070,95 € + IVA · 85,85 € | EPDM | -10°C +140°C | 1/4" | 3 | 53 | 0.20 | 0 - 4.2 bar | 0 - 4.2 bar | 0 - 4.2 bar | 0 - 4.2 bar | EPDM | 70,95 € | 85,85 € | ||||||||
| X1F 03 1 03 V 055,11 € + IVA · 66,68 € | FKM | -10°C +140°C | 1/4" | 3 | 53 | 0.20 | 0 - 3 bar | 0 - 7 bar | 0 - 10 bar | 0 - 16 bar | 0 - 3 bar | 0 - 5 bar | FKM | 55,11 € | 66,68 € | ||||||
| X1F 03 2 03 C 070,95 € + IVA · 85,85 € | CR | -35°C +100°C | 1/4" | 3 | 53 | 0.20 | 0 - 4.2 bar | 0 - 4.2 bar | 0 - 4.2 bar | 0 - 4.2 bar | CR | 70,95 € | 85,85 € | ||||||||
| X1F 03 1 03 E 054,93 € + IVA · 66,47 € | EPDM | -10°C +140°C | 1/4" | 3 | 53 | 0.20 | 0 - 3 bar | 0 - 7 bar | 0 - 10 bar | 0 - 16 bar | 0 - 3 bar | 0 - 5 bar | EPDM | 54,93 € | 66,47 € | ||||||
| X1F 03 1 03 C 054,93 € + IVA · 66,47 € | CR | 54,93 € | 66,47 € | ||||||||||||||||||
| X1F 03 1 04 N 053,99 € + IVA · 65,33 € | NBR | -10°C +90°C | 1/4" | 4 | 53 | 0.30 | 0 - 1 bar | 0 - 2.5 bar | 0 - 4 bar | 0 - 8 bar | 0 - 1 bar | 0 - 2.5 bar | NBR | 53,99 € | 65,33 € | ||||||
| X1F 03 1 04 V 055,11 € + IVA · 66,68 € | FKM | -10°C +140°C | 1/4" | 4 | 53 | 0.30 | 0 - 1 bar | 0 - 2.5 bar | 0 - 4 bar | 0 - 8 bar | 0 - 1 bar | 0 - 2.5 bar | FKM | 55,11 € | 66,68 € | ||||||
| X1F 03 1 04 E 054,93 € + IVA · 66,47 € | EPDM | -10°C +140°C | 1/4" | 4 | 53 | 0.30 | 0 - 1 bar | 0 - 2.5 bar | 0 - 4 bar | 0 - 8 bar | 0 - 1 bar | 0 - 2.5 bar | EPDM | 54,93 € | 66,47 € | ||||||
| X1F 03 1 04 C 054,93 € + IVA · 66,47 € | CR | -35°C +100°C | 1/4" | 4 | 53 | 0.30 | 0 - 1 bar | 0 - 2.5 bar | 0 - 4 bar | 0 - 8 bar | 0 - 1 bar | 0 - 2.5 bar | CR | 54,93 € | 66,47 € | ||||||
| X1F 02 B 15 N 047,05 € + IVA · 56,93 € | NBR | -10°C +90°C | 1/8" | 1.5 | 25 | 0.06 | 0 - 10 bar | 0 - 20 bar | 0 - 35 bar | NBR | 47,05 € | 56,93 € | |||||||||
| X1F 03 B 15 N 058,05 € + IVA · 70,24 € | NBR | -10°C +90°C | 1/4" | 1.5 | 25 | 0.06 | 0 - 10 bar | 0 - 20 bar | 0 - 35 bar | NBR | 58,05 € | 70,24 € | |||||||||
| X1F 02 B 15 V 048,17 € + IVA · 58,29 € | FKM | -10°C +140°C | 1/8" | 1.5 | 25 | 0.06 | 0 - 10 bar | 0 - 20 bar | 0 - 35 bar | FKM | 48,17 € | 58,29 € | |||||||||
| X1F 03 B 15 V 059,17 € + IVA · 71,60 € | FKM | -10°C +140°C | 1/4" | 1.5 | 25 | 0.06 | 0 - 10 bar | 0 - 20 bar | 0 - 35 bar | FKM | 59,17 € | 71,60 € | |||||||||
| X1F 02 B 15 E 047,98 € + IVA · 58,06 € | EPDM | -10°C +140°C | 1/8" | 1.5 | 25 | 0.06 | 0 - 10 bar | 0 - 20 bar | 0 - 35 bar | EPDM | 47,98 € | 58,06 € | |||||||||
| X1F 03 B 15 E 058,99 € + IVA · 71,38 € | EPDM | -10°C +140°C | 1/4" | 1.5 | 25 | 0.06 | 0 - 10 bar | 0 - 20 bar | 0 - 35 bar | EPDM | 58,99 € | 71,38 € | |||||||||
| X1F 02 B 15 C 047,98 € + IVA · 58,06 € | CR | -35°C +100°C | 1/8" | 1.5 | 25 | 0.06 | 0 - 10 bar | 0 - 20 bar | 0 - 35 bar | CR | 47,98 € | 58,06 € | |||||||||
| X1F 03 B 15 C 058,99 € + IVA · 71,38 € | CR | -35°C +100°C | 1/4" | 1.5 | 25 | 0.06 | 0 - 10 bar | 0 - 20 bar | 0 - 35 bar | CR | 58,99 € | 71,38 € | |||||||||
| X1F 02 B 02 N 047,05 € + IVA · 56,93 € | NBR | -10°C +90°C | 1/8" | 2 | 37 | 0.09 | 0 - 6.5 bar | 0 - 13 bar | 0 - 23 bar | NBR | 47,05 € | 56,93 € | |||||||||
| X1F 03 B 02 N 058,05 € + IVA · 70,24 € | NBR | -10°C +90°C | 1/4" | 2 | 37 | 0.09 | 0 - 6.5 bar | 0 - 13 bar | 0 - 23 bar | NBR | 58,05 € | 70,24 € | |||||||||
| X1F 02 B 02 V 048,17 € + IVA · 58,29 € | FKM | -10°C +140°C | 1/8" | 2 | 37 | 0.09 | 0 - 6.5 bar | 0 - 13 bar | 0 - 23 bar | FKM | 48,17 € | 58,29 € | |||||||||
| X1F 03 B 02 V 059,17 € + IVA · 71,60 € | FKM | -10°C +140°C | 1/4" | 2 | 37 | 0.09 | 0 - 6.5 bar | 0 - 13 bar | 0 - 23 bar | FKM | 59,17 € | 71,60 € | |||||||||
| X1F 02 B 02 E 047,98 € + IVA · 58,06 € | EPDM | -10°C +140°C | 1/8" | 2 | 37 | 0.09 | 0 - 6.5 bar | 0 - 13 bar | 0 - 23 bar | EPDM | 47,98 € | 58,06 € | |||||||||
| X1F 03 B 02 E 058,99 € + IVA · 71,38 € | EPDM | -10°C +140°C | 1/4" | 2 | 37 | 0.09 | 0 - 6.5 bar | 0 - 13 bar | 0 - 23 bar | EPDM | 58,99 € | 71,38 € | |||||||||
| X1F 02 B 02 C 047,98 € + IVA · 58,06 € | CR | -35°C +100°C | 1/8" | 2 | 37 | 0.09 | 0 - 6.5 bar | 0 - 13 bar | 0 - 23 bar | CR | 47,98 € | 58,06 € | |||||||||
| X1F 03 B 02 C 058,99 € + IVA · 71,38 € | CR | -35°C +100°C | 1/4" | 2 | 37 | 0.09 | 0 - 6.5 bar | 0 - 13 bar | 0 - 23 bar | CR | 58,99 € | 71,38 € | |||||||||
| X1F 02 B 25 N 047,05 € + IVA · 56,93 € | NBR | -10°C +90°C | 1/8" | 2.5 | 53 | 0.15 | 0 - 2.5 bar | 0 - 5 bar | 0 - 10 bar | NBR | 47,05 € | 56,93 € | |||||||||
| X1F 03 B 25 N 058,05 € + IVA · 70,24 € | NBR | -10°C +90°C | 1/4" | 2.5 | 53 | 0.15 | 0 - 2.5 bar | 0 - 5 bar | 0 - 10 bar | NBR | 58,05 € | 70,24 € | |||||||||
| X1F 02 B 25 V 048,17 € + IVA · 58,29 € | FKM | -10°C +140°C | 1/8" | 2.5 | 53 | 0.15 | 0 - 2.5 bar | 0 - 5 bar | 0 - 10 bar | FKM | 48,17 € | 58,29 € | |||||||||
| X1F 03 B 25 V 059,17 € + IVA · 71,60 € | FKM | -10°C +140°C | 1/4" | 2.5 | 53 | 0.15 | 0 - 2.5 bar | 0 - 5 bar | 0 - 10 bar | FKM | 59,17 € | 71,60 € | |||||||||
| X1F 02 B 25 E 047,98 € + IVA · 58,06 € | EPDM | -10°C +140°C | 1/8" | 2.5 | 53 | 0.15 | 0 - 2.5 bar | 0 - 5 bar | 0 - 10 bar | EPDM | 47,98 € | 58,06 € | |||||||||
| X1F 03 B 25 E 058,99 € + IVA · 71,38 € | EPDM | -10°C +140°C | 1/4" | 2.5 | 53 | 0.15 | 0 - 2.5 bar | 0 - 5 bar | 0 - 10 bar | EPDM | 58,99 € | 71,38 € | |||||||||
| X1F 02 B 25 C 047,98 € + IVA · 58,06 € | CR | -35°C +100°C | 1/8" | 2.5 | 53 | 0.15 | 0 - 2.5 bar | 0 - 5 bar | 0 - 10 bar | CR | 47,98 € | 58,06 € | |||||||||
| X1F 03 B 25 C 058,99 € + IVA · 71,38 € | CR | -35°C +100°C | 1/4" | 2.5 | 53 | 0.15 | 0 - 2.5 bar | 0 - 5 bar | 0 - 10 bar | CR | 58,99 € | 71,38 € | |||||||||
| X1F 02 B 03 N 047,05 € + IVA · 56,93 € | NBR | -10°C +90°C | 1/8" | 3 | 53 | 0.20 | - | 0 - 3 bar | 0 - 5.5 bar | NBR | 47,05 € | 56,93 € | |||||||||
| X1F 03 B 03 N 058,05 € + IVA · 70,24 € | NBR | -10°C +90°C | 1/4" | 3 | 53 | 0.20 | - | 0 - 3 bar | 0 - 5.5 bar | NBR | 58,05 € | 70,24 € | |||||||||
| X1F 02 B 03 V 048,17 € + IVA · 58,29 € | FKM | -10°C +140°C | 1/8" | 3 | 53 | 0.20 | - | 0 - 3 bar | 0 - 5.5 bar | FKM | 48,17 € | 58,29 € | |||||||||
| X1F 03 B 03 V 059,17 € + IVA · 71,60 € | FKM | -10°C +140°C | 1/4" | 3 | 53 | 0.20 | - | 0 - 3 bar | 0 - 5.5 bar | FKM | 59,17 € | 71,60 € | |||||||||
| X1F 02 B 03 E 047,98 € + IVA · 58,06 € | EPDM | -10°C +140°C | 1/8" | 3 | 53 | 0.20 | - | 0 - 3 bar | 0 - 5.5 bar | EPDM | 47,98 € | 58,06 € | |||||||||
| X1F 03 B 03 E 058,99 € + IVA · 71,38 € | EPDM | -10°C +140°C | 1/4" | 3 | 53 | 0.20 | - | 0 - 3 bar | 0 - 5.5 bar | EPDM | 58,99 € | 71,38 € | |||||||||
| X1F 02 B 03 C 047,98 € + IVA · 58,06 € | CR | -35°C +100°C | 1/8" | 3 | 53 | 0.20 | - | 0 - 3 bar | 0 - 5.5 bar | CR | 47,98 € | 58,06 € | |||||||||
| X1F 03 B 03 C 058,99 € + IVA · 71,38 € | CR | -35°C +100°C | 1/4" | 3 | 53 | 0.20 | - | 0 - 3 bar | 0 - 5.5 bar | CR | 58,99 € | 71,38 € | |||||||||
| X1F 02 3 15 N 046,17 € + IVA · 55,87 € | NBR | -10°C +90°C | 1/8" | 25 | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 1.5 / 1.4 | 0.06 / 0.05 | NBR | 46,17 € | 55,87 € | ||||||
| X1F 02 4 15 N 046,17 € + IVA · 55,87 € | NBR | -10°C +90°C | 1/8" | 25 | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 1.4 / 1.5 | 0.05 / 0.06 | NBR | 46,17 € | 55,87 € | ||||||
| X1F 02 3 15 V 047,44 € + IVA · 57,40 € | FKM | -10°C +140°C | 1/8" | 25 | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 1.5 / 1.4 | 0.06 / 0.05 | FKM | 47,44 € | 57,40 € | ||||||
| X1F 02 4 15 V 047,44 € + IVA · 57,40 € | FKM | -10°C +140°C | 1/8" | 25 | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 1.4 / 1.5 | 0.05 / 0.06 | FKM | 47,44 € | 57,40 € | ||||||
| X1F 02 3 15 E 047,29 € + IVA · 57,22 € | EPDM | -10°C +140°C | 1/8" | 25 | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 1.5 / 1.4 | 0.06 / 0.05 | EPDM | 47,29 € | 57,22 € | ||||||
| X1F 02 4 15 E 047,29 € + IVA · 57,22 € | EPDM | -10°C +140°C | 1/8" | 25 | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 1.4 / 1.5 | 0.05 / 0.06 | EPDM | 47,29 € | 57,22 € | ||||||
| X1F 02 3 02 N 046,17 € + IVA · 55,87 € | NBR | -10°C +90°C | 1/8" | 25 | 0 - 6 bar | 0 - 6 bar | 0 - 6 bar | 0 - 6 bar | 0 - 6 bar | 0 - 6 bar | 2 / 1.4 | 0.09 / 0.05 | NBR | 46,17 € | 55,87 € | ||||||
| X1F 02 4 02 N 046,17 € + IVA · 55,87 € | NBR | -10°C +90°C | 1/8" | 25 | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 1.4 / 2 | 0.05 / 0.09 | NBR | 46,17 € | 55,87 € | ||||||
| X1F 02 3 02 V 047,44 € + IVA · 57,40 € | FKM | -10°C +140°C | 1/8" | 25 | 0 - 6 bar | 0 - 6 bar | 0 - 6 bar | 0 - 6 bar | 0 - 6 bar | 0 - 6 bar | 2 / 1.4 | 0.09 / 0.05 | FKM | 47,44 € | 57,40 € | ||||||
| X1F 02 4 02 V 047,44 € + IVA · 57,40 € | FKM | -10°C +140°C | 1/8" | 25 | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 1.4 / 2 | 0.05 / 0.09 | FKM | 47,44 € | 57,40 € | ||||||
| X1F 02 3 02 E 047,29 € + IVA · 57,22 € | EPDM | -10°C +140°C | 1/8" | 25 | 0 - 6 bar | 0 - 6 bar | 0 - 6 bar | 0 - 6 bar | 0 - 6 bar | 0 - 6 bar | 2 / 1.4 | 0.09 / 0.05 | EPDM | 47,29 € | 57,22 € | ||||||
| X1F 02 4 02 E 047,29 € + IVA · 57,22 € | EPDM | -10°C +140°C | 1/8" | 25 | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 1.4 / 2 | 0.05 / 0.09 | EPDM | 47,29 € | 57,22 € | ||||||
| X1F 02 3 25 N 046,17 € + IVA · 55,87 € | NBR | -10°C +90°C | 1/8" | 25 | 0 - 4 bar | 0 - 4 bar | 0 - 4 bar | 0 - 4 bar | 0 - 4 bar | 0 - 4 bar | 2.5 / 1.4 | 0.15 / 0.05 | NBR | 46,17 € | 55,87 € | ||||||
| X1F 02 4 25 N 046,17 € + IVA · 55,87 € | NBR | -10°C +90°C | 1/8" | 25 | 0 - 4 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 4 bar | 0 - 10 bar | 1.4 / 2.5 | 0.05 / 0.15 | NBR | 46,17 € | 55,87 € | ||||||
| X1F 02 3 25 V 047,44 € + IVA · 57,40 € | FKM | -10°C +140°C | 1/8" | 25 | 0 - 4 bar | 0 - 4 bar | 0 - 4 bar | 0 - 4 bar | 0 - 4 bar | 0 - 4 bar | 2.5 / 1.4 | 0.15 / 0.05 | FKM | 47,44 € | 57,40 € | ||||||
| X1F 02 4 25 V 047,44 € + IVA · 57,40 € | FKM | -10°C +140°C | 1/8" | 25 | 0 - 4 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 4 bar | 0 - 10 bar | 1.4 / 2.5 | 0.05 / 0.15 | FKM | 47,44 € | 57,40 € | ||||||
| X1F 02 3 25 E 047,29 € + IVA · 57,22 € | EPDM | -10°C +140°C | 1/8" | 25 | 0 - 4 bar | 0 - 4 bar | 0 - 4 bar | 0 - 4 bar | 0 - 4 bar | 0 - 4 bar | 2.5 / 1.4 | 0.15 / 0.05 | EPDM | 47,29 € | 57,22 € | ||||||
| X1F 02 3 03 N 046,17 € + IVA · 55,87 € | NBR | -10°C +90°C | 1/8" | 25 | - | 0 - 3 bar | 0 - 3 bar | 0 - 3 bar | 0 - 3 bar | 0 - 3 bar | 3 / 1.4 | 0.20 / 0.05 | NBR | 46,17 € | 55,87 € | ||||||
| X1F 02 4 25 E 047,29 € + IVA · 57,22 € | EPDM | -10°C +140°C | 1/8" | 25 | 0 - 4 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 4 bar | 0 - 10 bar | 1.4 / 2.5 | 0.05 / 0.15 | EPDM | 47,29 € | 57,22 € | ||||||
| X1F 02 3 03 V 047,44 € + IVA · 57,40 € | FKM | -10°C +140°C | 1/8" | 25 | - | 0 - 3 bar | 0 - 3 bar | 0 - 3 bar | 0 - 3 bar | 0 - 3 bar | 3 / 1.4 | 0.20 / 0.05 | FKM | 47,44 € | 57,40 € | ||||||
| X1F 03 4 15 N 057,19 € + IVA · 69,20 € | NBR | -10°C +90°C | 1/4" | 25 | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 1.4 / 1.5 | 0.05 / 0.06 | NBR | 57,19 € | 69,20 € | ||||||
| X1F 02 3 03 E 047,29 € + IVA · 57,22 € | EPDM | -10°C +140°C | 1/8" | 25 | - | 0 - 3 bar | 0 - 3 bar | 0 - 3 bar | 0 - 3 bar | 0 - 3 bar | 3 / 1.4 | 0.20 / 0.05 | EPDM | 47,29 € | 57,22 € | ||||||
| X1F 03 4 15 V 058,45 € + IVA · 70,72 € | FKM | -10°C +140°C | 1/4" | 25 | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 1.4 / 1.5 | 0.05 / 0.06 | FKM | 58,45 € | 70,72 € | ||||||
| X1F 02 3 04 N 046,17 € + IVA · 55,87 € | NBR | -10°C +90°C | 1/8" | 25 | - | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 4 / 1.4 | 0.30 / 0.05 | NBR | 46,17 € | 55,87 € | ||||||
| X1F 03 4 15 E 058,31 € + IVA · 70,56 € | EPDM | -10°C +140°C | 1/4" | 25 | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 1.4 / 1.5 | 0.05 / 0.06 | EPDM | 58,31 € | 70,56 € | ||||||
| X1F 02 3 04 V 047,44 € + IVA · 57,40 € | FKM | -10°C +140°C | 1/8" | 25 | - | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 4 / 1.4 | 0.30 / 0.05 | FKM | 47,44 € | 57,40 € | ||||||
| X1F 03 4 02 N 057,19 € + IVA · 69,20 € | NBR | -10°C +90°C | 1/4" | 25 | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 1.4 / 2 | 0.05 / 0.09 | NBR | 57,19 € | 69,20 € | ||||||
| X1F 02 3 04 E 047,29 € + IVA · 57,22 € | EPDM | -10°C +140°C | 1/8" | 25 | - | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 4 / 1.4 | 0.30 / 0.05 | EPDM | 47,29 € | 57,22 € | ||||||
| X1F 03 4 02 V 058,45 € + IVA · 70,72 € | FKM | -10°C +140°C | 1/4" | 25 | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 1.4 / 2 | 0.05 / 0.09 | FKM | 58,45 € | 70,72 € | ||||||
| X1F 03 3 15 N 057,19 € + IVA · 69,20 € | NBR | -10°C +90°C | 1/4" | 25 | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 1.5 / 1.4 | 0.06 / 0.05 | NBR | 57,19 € | 69,20 € | ||||||
| X1F 03 4 02 E 058,31 € + IVA · 70,56 € | EPDM | -10°C +140°C | 1/4" | 25 | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 1.4 / 2 | 0.05 / 0.09 | EPDM | 58,31 € | 70,56 € | ||||||
| X1F 03 3 15 V 058,45 € + IVA · 70,72 € | FKM | -10°C +140°C | 1/4" | 25 | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 1.5 / 1.4 | 0.06 / 0.05 | FKM | 58,45 € | 70,72 € | ||||||
| X1F 03 3 15 E 058,31 € + IVA · 70,56 € | EPDM | -10°C +140°C | 1/4" | 25 | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 1.5 / 1.4 | 0.06 / 0.05 | EPDM | 58,31 € | 70,56 € | ||||||
| X1F 03 4 25 N 057,19 € + IVA · 69,20 € | NBR | -10°C +90°C | 1/4" | 25 | 0 - 4 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 4 bar | 0 - 10 bar | 1.4 / 2.5 | 0.05 / 0.15 | NBR | 57,19 € | 69,20 € | ||||||
| X1F 03 3 02 N 057,19 € + IVA · 69,20 € | NBR | -10°C +90°C | 1/4" | 25 | 0 - 6 bar | 0 - 6 bar | 0 - 6 bar | 0 - 6 bar | 0 - 6 bar | 0 - 6 bar | 2 / 1.4 | 0.09 / 0.05 | NBR | 57,19 € | 69,20 € | ||||||
| X1F 03 4 25 V 058,45 € + IVA · 70,72 € | FKM | -10°C +140°C | 1/4" | 25 | 0 - 4 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 4 bar | 0 - 10 bar | 1.4 / 2.5 | 0.05 / 0.15 | FKM | 58,45 € | 70,72 € | ||||||
| X1F 03 3 02 V 058,45 € + IVA · 70,72 € | FKM | -10°C +140°C | 1/4" | 25 | 0 - 6 bar | 0 - 6 bar | 0 - 6 bar | 0 - 6 bar | 0 - 6 bar | 0 - 6 bar | 2 / 1.4 | 0.09 / 0.05 | FKM | 58,45 € | 70,72 € | ||||||
| X1F 03 4 25 E 058,31 € + IVA · 70,56 € | EPDM | -10°C +140°C | 1/4" | 25 | 0 - 4 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 4 bar | 0 - 10 bar | 1.4 / 2.5 | 0.05 / 0.15 | EPDM | 58,31 € | 70,56 € | ||||||
| X1F 03 3 02 E 058,31 € + IVA · 70,56 € | EPDM | -10°C +140°C | 1/4" | 25 | 0 - 6 bar | 0 - 6 bar | 0 - 6 bar | 0 - 6 bar | 0 - 6 bar | 0 - 6 bar | 2 / 1.4 | 0.09 / 0.05 | EPDM | 58,31 € | 70,56 € | ||||||
| X1F 03 3 25 N 057,19 € + IVA · 69,20 € | NBR | -10°C +90°C | 1/4" | 25 | 0 - 4 bar | 0 - 4 bar | 0 - 4 bar | 0 - 4 bar | 0 - 4 bar | 0 - 4 bar | 2.5 / 1.4 | 0.15 / 0.05 | NBR | 57,19 € | 69,20 € | ||||||
| X1F 03 3 25 V 058,45 € + IVA · 70,72 € | FKM | -10°C +140°C | 1/4" | 25 | 0 - 4 bar | 0 - 4 bar | 0 - 4 bar | 0 - 4 bar | 0 - 4 bar | 0 - 4 bar | 2.5 / 1.4 | 0.15 / 0.05 | FKM | 58,45 € | 70,72 € | ||||||
| X1F 03 3 25 E 058,31 € + IVA · 70,56 € | EPDM | -10°C +140°C | 1/4" | 25 | 0 - 4 bar | 0 - 4 bar | 0 - 4 bar | 0 - 4 bar | 0 - 4 bar | 0 - 4 bar | 2.5 / 1.4 | 0.15 / 0.05 | EPDM | 58,31 € | 70,56 € | ||||||
| X1F 03 3 03 N 057,19 € + IVA · 69,20 € | NBR | -10°C +90°C | 1/4" | 25 | - | 0 - 3 bar | 0 - 3 bar | 0 - 3 bar | 0 - 3 bar | 0 - 3 bar | 3 / 1.4 | 0.20 / 0.05 | NBR | 57,19 € | 69,20 € | ||||||
| X1F 03 3 03 V 058,45 € + IVA · 70,72 € | FKM | -10°C +140°C | 1/4" | 25 | - | 0 - 3 bar | 0 - 3 bar | 0 - 3 bar | 0 - 3 bar | 0 - 3 bar | 3 / 1.4 | 0.20 / 0.05 | FKM | 58,45 € | 70,72 € | ||||||
| X1F 03 3 03 E 058,31 € + IVA · 70,56 € | EPDM | -10°C +140°C | 1/4" | 25 | - | 0 - 3 bar | 0 - 3 bar | 0 - 3 bar | 0 - 3 bar | 0 - 3 bar | 3 / 1.4 | 0.20 / 0.05 | EPDM | 58,31 € | 70,56 € | ||||||
| X1F 03 3 04 N 057,19 € + IVA · 69,20 € | NBR | -10°C +90°C | 1/4" | 25 | - | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 4 / 1.4 | 0.30 / 0.05 | NBR | 57,19 € | 69,20 € | ||||||
| X1F 03 3 04 V 058,45 € + IVA · 70,72 € | FKM | -10°C +140°C | 1/4" | 25 | - | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 4 / 1.4 | 0.30 / 0.05 | FKM | 58,45 € | 70,72 € | ||||||
| X1F 03 3 04 E 058,31 € + IVA · 70,56 € | EPDM | -10°C +140°C | 1/4" | 25 | - | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 4 / 1.4 | 0.30 / 0.05 | EPDM | 58,31 € | 70,56 € |
Precios por pieza: pide las que necesites. Si no hemos podido comprobar el precio de hoy en la tienda, ves el de la última actualización de la web: el carrito te enseña el precio final antes de pagar. El carrito calcula el IVA sobre el total de cada línea: puede variar un poco respecto a multiplicar el precio con IVA de la tabla por la cantidad. Datos del catálogo y la tarifa de Aignep 2026.
Descargas
- Catálogo técnico de la serie (Serie X1F INOX Electroválvulas de Accionamiento Directo)PDF, 3,8 MB, se abre en otra pestaña
- Acuse de recibo ATEX del organismo notificado (electroválvulas Fluidity, en inglés)PDF, 661 KB, se abre en otra pestaña
- Declaración ATEX de las electroválvulas FluidityPDF, 113 KB, se abre en otra pestaña
- Instrucciones adicionales ATEX de las electroválvulas para fluidos (en italiano)PDF, 158 KB, se abre en otra pestaña
- Declaración de conformidad para agua de consumo (DM 174, en italiano)PDF, 194 KB, se abre en otra pestaña
Certificados generales de Aignep (5)
- Certificado ISO 9001 de Aignep, se abre en otra pestaña (PDF, 892 KB)
- Declaración RoHS (en inglés), se abre en otra pestaña (PDF, 249 KB)
- Declaración REACH y SCIP (en inglés), se abre en otra pestaña (PDF, 441 KB)
- Declaración sobre PFAS: qué series los llevan (en inglés), se abre en otra pestaña (PDF, 238 KB)
- Declaración «sin silicona» (en italiano), se abre en otra pestaña (PDF, 219 KB)
Documentos de Aignep, tal cual los publica el fabricante. Algunos certificados están en inglés o en italiano.
Fabricante: Aignep
